Buffer 50
C
-
Storage volume V51 l
-
Height570 mm
-
DiameterΦ454 mm
-
Working pressure0,6 (6) / 1 (10) MPa (bar)
High quality insulation
Technical properties
Characteristics
Energy efficiency class
C
Standing loss S
46 W
Storage volume V
51 l

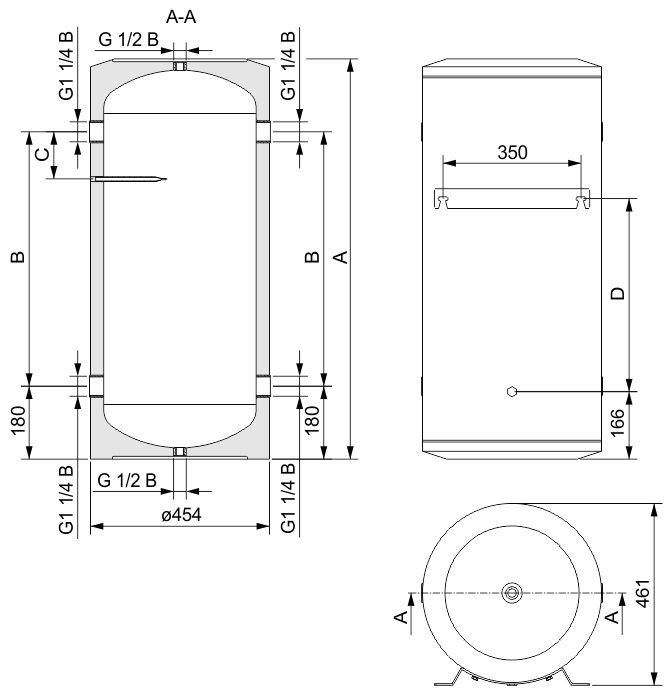

Dimensions of connections
Height
570 mm
Diameter
Φ454 mm
Heating water inlet
G1 1/4
Heating water outlet
G1 1/4
Net/gross weight/with water
16,5/18,5/66,50 kg
Technical characteristics
Working pressure
0,6 (6) / 1 (10) MPa (bar)
Max. water temperature
95 °C
Non-enameled steel tank
+
Average thickness of insulation
33 mm
Accessories
Air vent pot with valve G ½
+
Discharge ball valve G ½
+
Plug G1 1/4-ZN 2 pcs
+
Transportation data
Packaging dimensions [WxDxH]
480x490x595 mm
