DHW LT 120
A+
-
Power consumption within 24 hours2,240 kWh
-
AEC annual electricity consumption PPR459 kWh
-
Storage volume V117,6 l
-
Net/Gross/Weight with water68 / 71 / 188 kg
High quality insulation
Indirect tube air heaters
Automatic deforst
Overheating protection
Air ducts
Anti-legionella function
Operation range -7°C to +35°C.
Heating of water up to 55°C.
Possibility of ventilation of space independently of the heat pump’s operation.
Technical properties
Characteristics
Declared load profile
M
Energy efficiency class
A+
Energy efficiency ƞwh
112 %
AEC annual electricity consumption PPR
459 kWh
Power consumption within 24 hours
2,240 kWh
Thermostat temperature settings
55 °C
Sound power level LWA, indoors /Sound Pressure on 1m
51 / 39,5 dB(A)
Value of smart
0
Storage volume V
117,6 l
Mixed water at 40°C V40
142 l
Technical characteristics
Heating time A15/W10-55
6h 40min
Heating time A7/W10-55
8h 41min
Energy consuption by choosen cyclus A15/W10-55
2,08 kWh
Energy consumption by chosen cycle A7/W10-55
2,51 kWh
COPDHW(A15/W10-55) EN16147
3,10
COPDHW (A7 / W10-55) EN 16147
2,61
Standby power input according to EN16147
27 W
Refrigiant
R134a (GWP 1430)
Quantity of refrigiant
0,540 kg
Working range - air temperature
-7 / +35 °C
Working Air Flow
100-230 m3/h
Pressure Drop by 150m3/h (60%/80%)
70 (90) Pa
Electrical specifications
Nominal electrical power -compressor
250 W
Maximum power consumption
2350 W
Number of el.heaters x power
2 x 1000 W
Voltage/Frequecy
230/50 V/Hz
Electric protection
16 A
Degree of protection
IP24
Storage tank
Enamelled steel / Protection Mg anode
+/+
Working pressure
0,6 (6) / 0,9 (9) Mpa (bar)
Max temperature
Hot water tank heat pump
55 °C
Hot water tank electric heater
75 °C

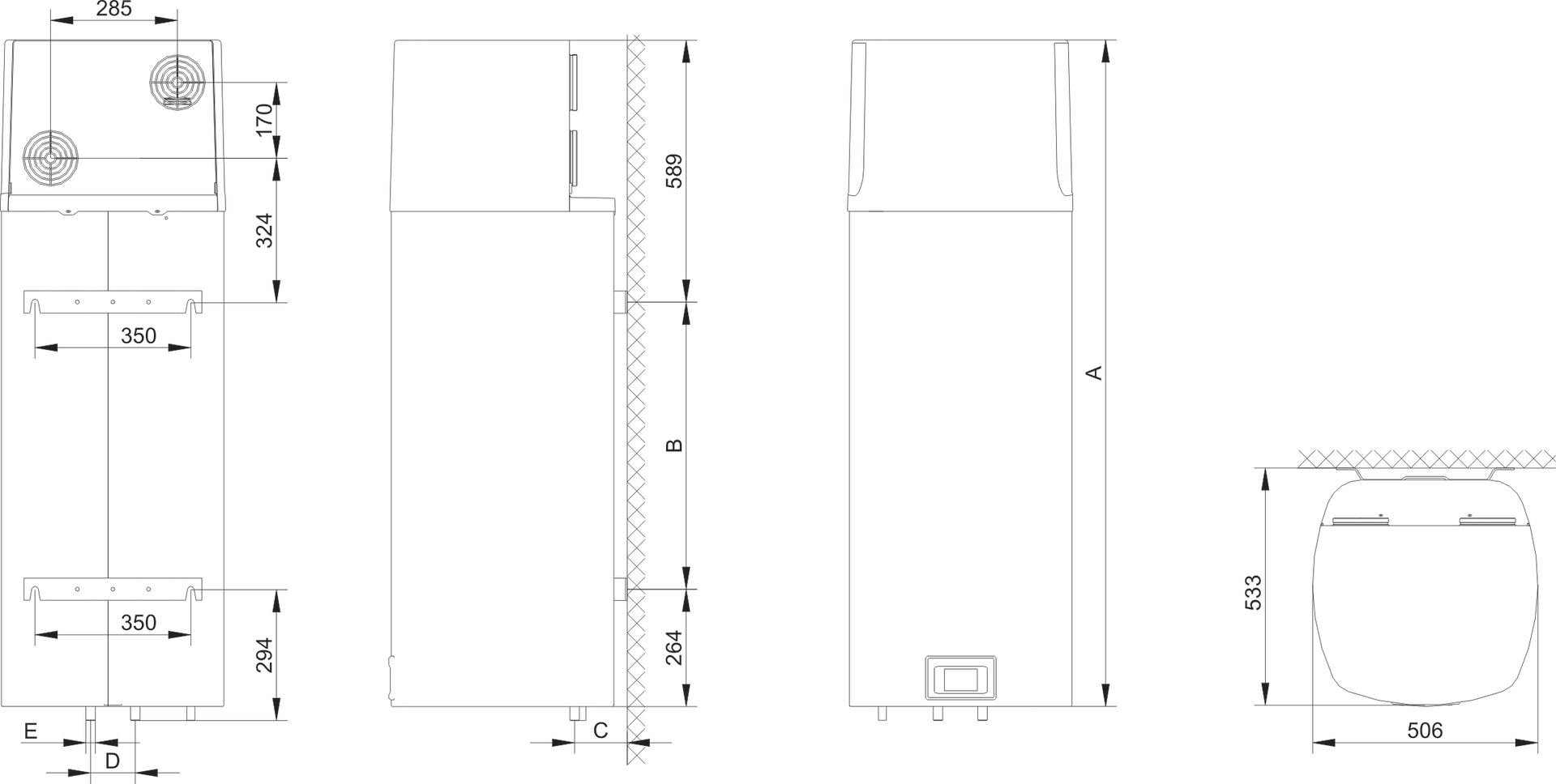

Connection dimensions
Average thickness of insulation
50 mm
Connections to the supply network
G 1/2
Dimensions of air connections
Ø125 (150x70) /10 mm/m
Net/Gross/Weight with water
68 / 71 / 188 kg
Transportation data
Packaging dimensions [WxDxH]
575x600x1665 mm
