DHW W 100
A+
-
Daily electricity consumption Qelec_ACC1,715 kWh
-
AEC annual electricity consumption364 kWh
-
Mixed water at 40°C V40116 l
-
Net/Gross/Weight with water62 / 65 /162 kg
High quality insulation
Indirect tube air heaters
Overheating protection
Anti-legionella function
Operation range (temperature of heating water) +12°C to +40°C.
Heating of domestic water up to 65°C.
Technical properties
Characteristics
Declared load profile
M
Energy efficiency class
A+
Energy efficiency ƞwh
141 %
AEC annual electricity consumption
364 kWh
Daily electricity consumption Qelec_ACC
1,715 kWh
Thermostat temperature settings
55 °C
Sound power level LWA, indoors
51 dB(A)
Storage volume V
97,9 l
Mixed water at 40°C V40
116 l
Technical characteristics
Heating time W25/W10-55
03:25 h:min
Heating up energy input W25/W10-55
0,78 kWh
Energy consumption by chosen cycle W25/W10-55
1,32 kWh
COPDHW (W25 / W10-55) EN 16147
4,45
Standby power input according to EN16147
10 W
Refrigiant
R134a (GWP 1430)
Quantity of refrigiant
0,550 kg
Operating range - heating water temparature
+12 / +40 °C
Working Water Flow
200 l/h
Electrical specifications
Nominal electrical power -compressor
200 W
Maximum power consumption
2380 W
Number of el.heaters x power
2x1000 W
Voltage/Frequecy
230/50 V/Hz
Electric protection
16 A
Degree of protection
IP 24
Storage tank
Enamelled steel / Protection Mg anode
+/+
Working pressure
0,6 (6) / 0,9 (9) Mpa (bar)
Max temperature
Hot water tank heat pump
65 °C
Hot water tank electric heater
75 °C

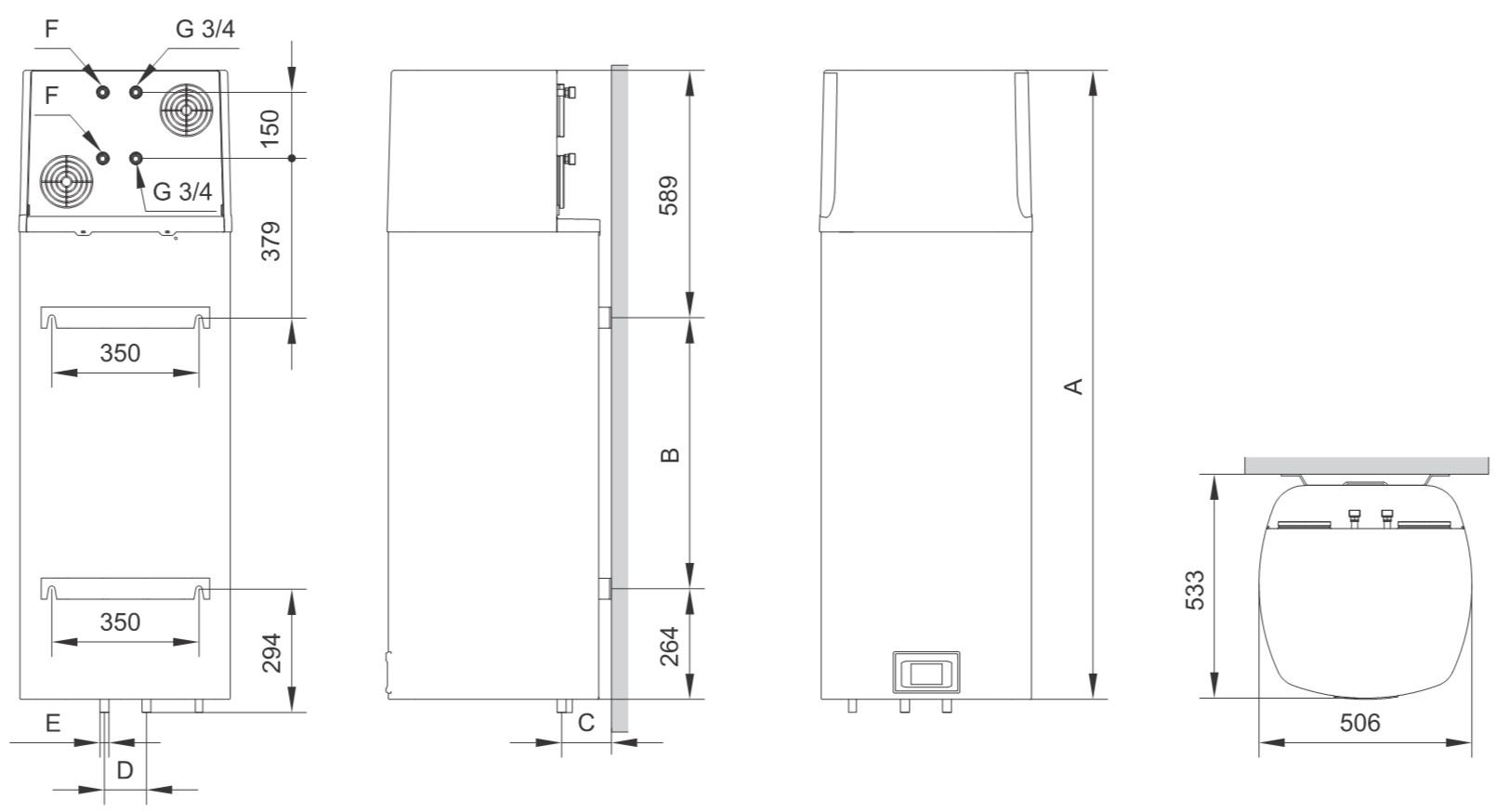

Connection dimension
Height
1342 mm
Width
506 mm
Depth
533 mm
Connections to the watter supply network
G1/2
Connections water source and radiator
G3/4
Max. conection lenght - Radiator
/
Internal pressure drop - source
0,8 (0,08) kPa (bar)
Net/Gross/Weight with water
62 / 65 /162 kg
Transportation data
Packaging dimensions [WxDxH]
575x600x1510 mm
