DHWM C 300 | TIKI

DHWM C 300

A+
  • Daily electricity consumption Qelec_ACC
    4,362 kWh
  • AEC annual electricity consumption
    936 kWh
  • Storage volume V
    275,0 l
High quality insulation
Indirect tube air heaters
Overheating protection
Anti-legionella function

Operation range +7°C to +40°C.

Heating of water up to 65°C in heat pump only mode

Electric emergency/booster heater factory-fitted as standard for an occasionally higher hot water demand.

Integrated coil heat exchanger for connecting an external heat sources such as heating boilers, furnaces or solar collectors.

Technical properties

Characteristics

Declared load profile
XL
Energy efficiency class
A+
Energy efficiency ƞwh
179 %
AEC annual electricity consumption
936 kWh
Daily electricity consumption Qelec_ACC
4,362 kWh
Thermostat temperature settings
55 °C
Sound power level LWA, indoors
59 dB(A)
Storage volume V
275,0 l
Mixed water at 40°C
380 l

Technical characteristics

Heating time A15/W10-55
07:55 h:min
Heating time A20/W10-55
06:57 h:min
Energy consuption by choosen cyclus A15 / W10-55
4,77 kWh
Energy consumption by chosen cycle A20 / W10-55
4,37 kWh
COPDHW(A15/W10-55) EN16147
4,0
COPDHW (A20/W10-55) EN16147
4,4
Standby power input according to EN16147
18 W
Refrigiant
R134a (GWP 1430)
Quantity of refrigiant
1,100 kg
Working range - air temperature
+7 / +40 °C

Electrical specifications

Nominal electrical power -compressor
475 W
Maximum power consumption
2750 W
Number of el.heaters x power
2 x 1000 W
Voltage/Frequecy
230/50 V/Hz
Electric protection
16 A
Degree of protection
IP 22

Storage tank

Enamelled steel / Protection Mg anode
+/+
Working pressure
0,6 (6) / 0,9 (9) Mpa (bar)

Max temperature

Hot water tank heat pump
65 °C
Hot water tank electric heater
75 °C
Hot water tank heat exchanger
85 °C

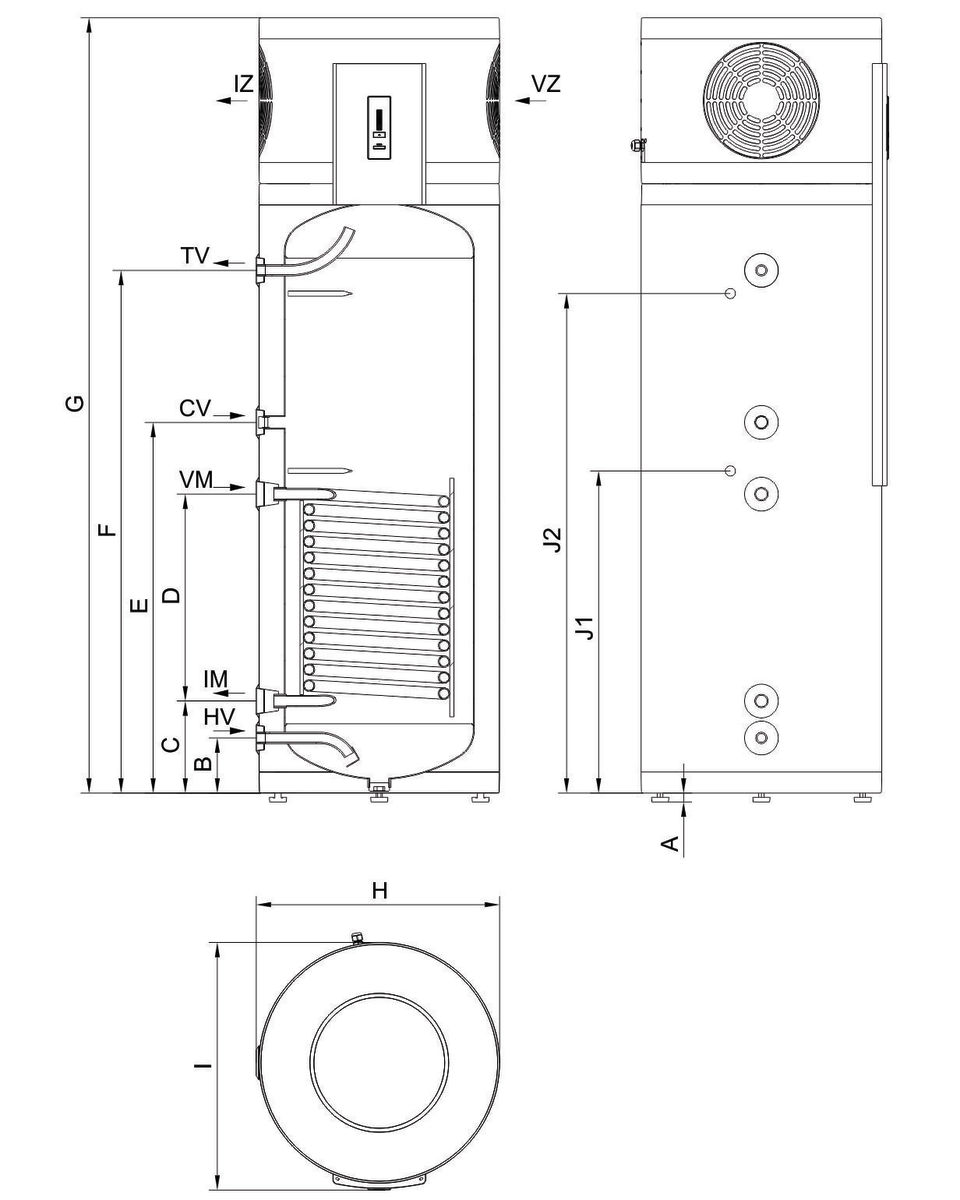

Dimensions and connections

Average thickness of insulation
67 mm
Connections to the supply network
G 1
Connections to the heat exchanger
G 1
Max working pressure heat exchanger
1,2 (12) Mpa (bar)
Surface area of the heat exchanger lower/upper
1,1/- m2
Heat exchanger volume bottom /top
7 l
Exchange power in continuous mode (max. coil output)
29,1 kW
Continous output ΔT=35K
715 l/h
Net/Gross/Weight with water
135/147/410 kg

Transportation data

Packaging dimensions [WxDxH]
800x800x2160 mm
