Eco Twin Tower 230/70-2.2
B
-
Energy efficiency classB
-
Volume218 l
Highly efficient system
The Eco Twin Tower – combines comfort, efficiency, and space-saving in one.
Advantages:
- Universal integration into various heating systems.
- Easy installation and compact design.
- Reduced space requirements for greater flexibility.
- High efficiency for low operational costs and energy-efficient performance.
- Guaranteed hygiene of sanitary hot water with an enamel-coated boiler.
- Long lifespan.
- Thick-walled connections that allow durable and easy installation.
- Easy front-side maintenance.
Technical properties
Storage tank
Energy efficiency class
B
Volume
218 l
Tank protection
MG anode + enamel
Insulation thickness
67 mm
Connections to the supply network
R1
Connections to the heat exchanger
G 5/4
Circulation water connection
G 3/4
Surface area of the heat exchanger (bottom/top)
2,2 m2
Maximum working pressure
10 bar
Maximum temperature
85°C
Electric heating element
Possible subsequent installation
Coating
Gray foil coating – RAL9006

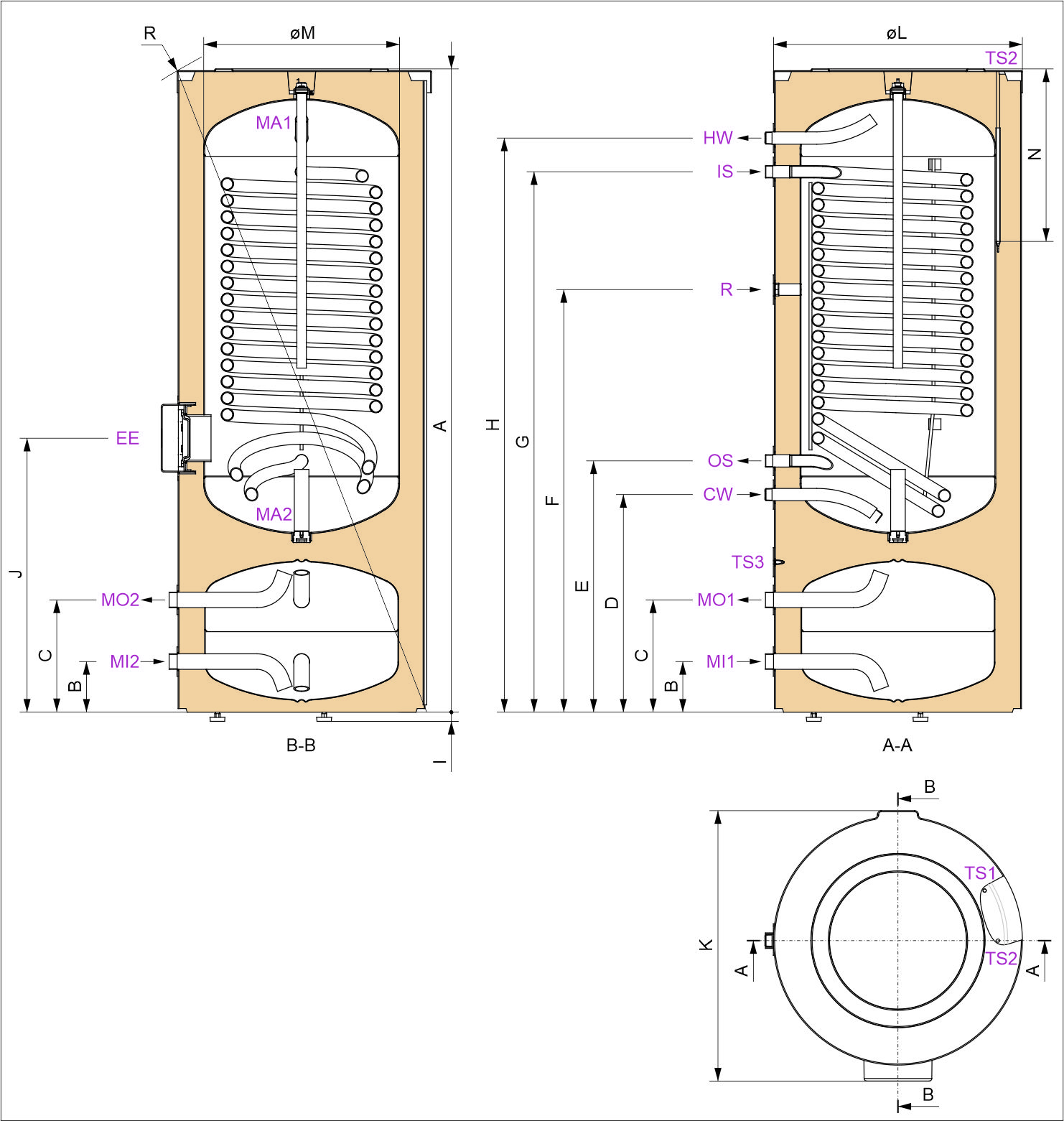

Dimensions
1800 x Φ680 mm
Weight
125 kg
Buffer tank
Energy efficiency class
B
Volume
67 l
Tank protection
0
Insulation thickness
67 mm
Connections to the supply network
G 5/4
Connections to the heat exchanger
0
Circulation water connection
0
Surface area of the heat exchanger (bottom/top)
0
Maximum working pressure
6
Maximum temperature
95°C
Electric heating element
0
Coating
Gray foil coating – RAL9006
Dimensions
1800 x Φ680 mm
Weight
125 kg
