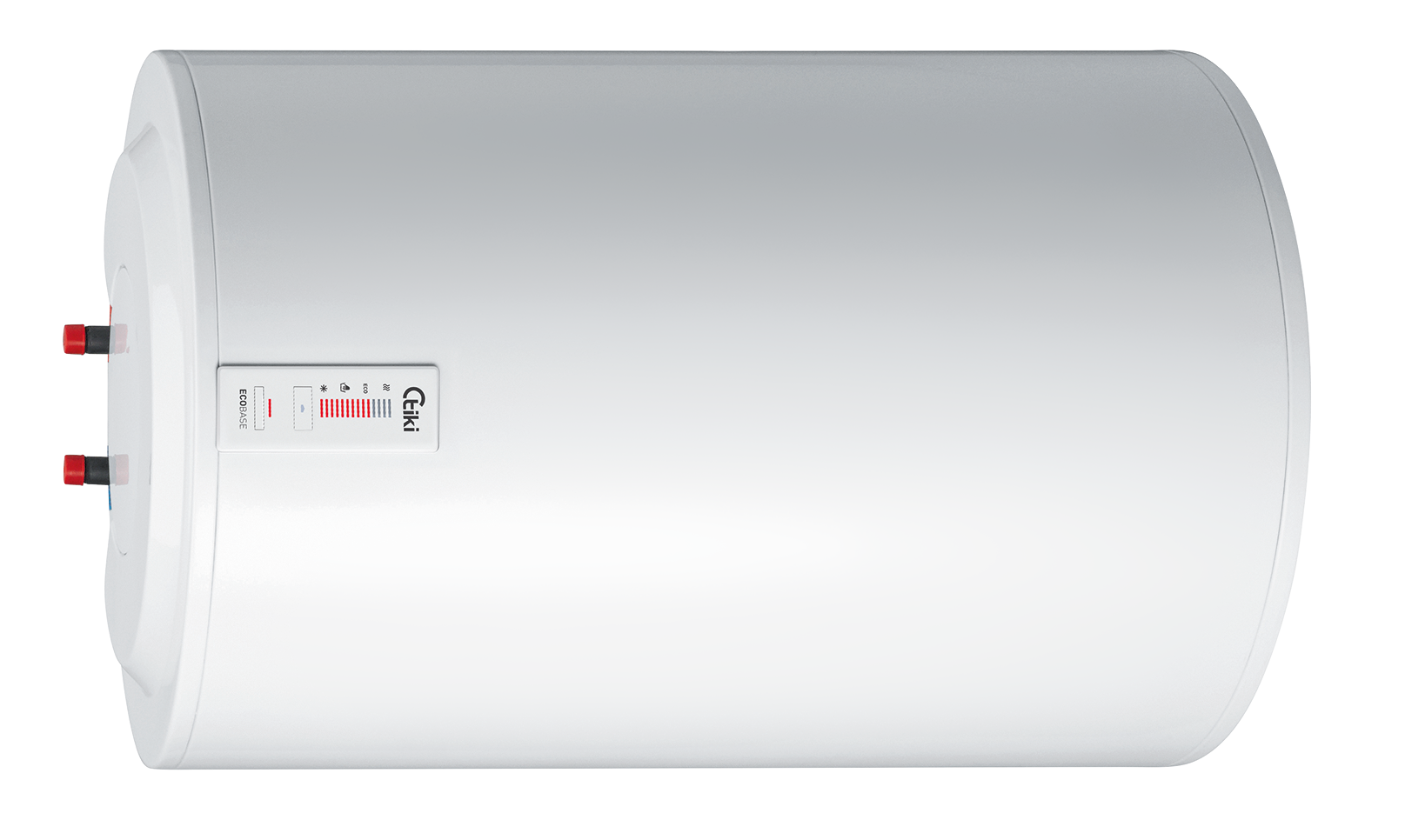

Econ MU 100
C
-
Storage volume V96,1 l
-
Daily electricity consumption Qelec_ACC12,710 kWh
-
AEC annual electricity consumption2738 kWh
-
Net/gross weight/with water38/41/138 kg
Vetrical and horizontal wall mounting
Indirect tube air heaters
High quality insulation
Technical properties
Characteristics
Declared load profile
L
Energy efficiency class
C
Energy efficiency ƞwh
37 %
AEC annual electricity consumption
2738 kWh
Daily electricity consumption Qelec_ACC
12,710 kWh
Thermostat temperature settings
"eco"
Value of smart
0
Storage volume V
96,1 l
Mixed water at 40°C V40
137 l
Purpose
One or more connection point
+
Vertical wall mounting
+
Horizontal wall mounting
+
Dimensions of connections
Average thickness of insulation
40 mm
Connections to the supply network
G 1/2
Net/gross weight/with water
38/41/138 kg
Technical characteristics
Working pressure
0,6 (6) / 0,9 (9) Mpa(bar)
Enamelled steel
+
Protective magnesium anode
+
Electronic control unit
+
On / Off key
+
Temperature range adjustment up to 75 °C
+
LED Thermometer
+
Overheating protection
+
Dry fire protection
+
Setting to "freeze prevention"
+
Indication of heating element operation
+
Indication of thermostat failure
+
Indication of over heating
+
Degree of protection
IP 24
Electrical connections
Number of el.heaters x power
2x1000 W
Power consumption
2000 W
Voltage 230 V ~
+
Nominal current
8,7 A
Functional characteristics
Thermal losses at 65 °C
1,33 kWh/24
Heating time from 10 to 65 °C
3h 16min
Transportation data
Packaging dimensions [WxDxH]
600x600x1050 mm
