Mini PBT 10
A
-
Storage volume V9,9 l
-
Daily electricity consumption Qelec_ACC2,461 kWh
-
AEC annual electricity consumption524 kWh
-
Packaging dimensions [WxDxH]300x400x530 mm
Under sink installation
Electric immersion heaters
Technical properties
Characteristics
Declared load profile
XXS
Energy efficiency class
A
Energy efficiency ƞwh
35 %
AEC annual electricity consumption
524 kWh
Daily electricity consumption Qelec_ACC
2,461 kWh
Thermostat temperature settings
"e" / "eco"
Value of smart
0
Storage volume V
9,9 l
Purpose
One connection point
+
Overbasin installation
0
Underbasin installation
+

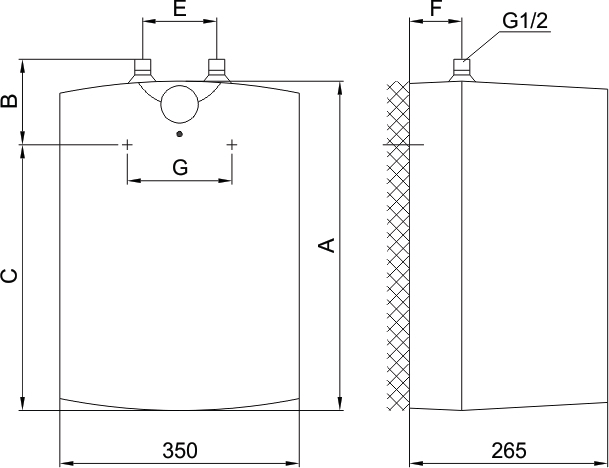

Dimensions of connections
Average thickness of insulation
40 mm
Connections to the supply network
G 1/2
Net/gross weight/with water
8/9/18 kg
Technical characteristics
Working pressure
0,6 (6) / 0,9 (9) MPa (bar)
Plastic tank
+
Protective magnesium anode
+
Selection of temperature up to 75 °C
+
Protection against freezing
+
Heating element control lamp
+
Degree of protection
IP24
Electrical connections
Power consumption
2000 W
Voltage 230 V ~
+
Nominal current
8,7 A
Functional characteristics
Thermal losses at 65 °C
0,48 kWh/24
Heating time from 10 to 65 °C
20min
Transportation data
Packaging dimensions [WxDxH]
300x400x530 mm
