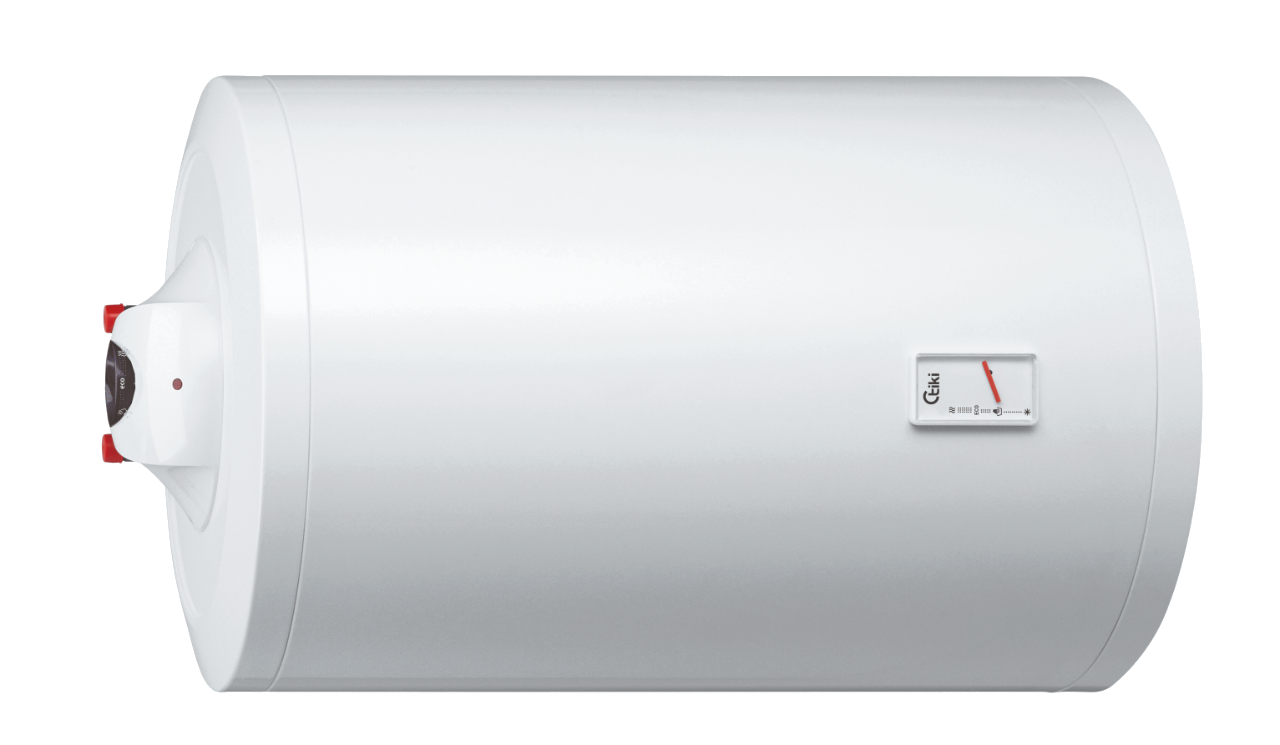

Prime MU 120
C
-
Storage volume V110,7 l
-
Daily electricity consumption Qelec_ACC12,901 kWh
-
AEC annual electricity consumption2770 kWh
-
Packaging dimensions [WxDxH]488x498x1115 mm
Vetrical and horizontal wall mounting
Electric immersion heaters
High quality insulation
Technical properties
Characteristics
Declared load profile
L
Energy efficiency class
C
Energy efficiency ƞwh
37 %
AEC annual electricity consumption
2770 kWh
Daily electricity consumption Qelec_ACC
12,901 kWh
Thermostat temperature settings
"e" / "eco"
Value of smart
0
Storage volume V
110,7 l
Mixed water at 40°C V40
142 l
Purpose
One or more connection point
+
Vertical wall mounting
+
Horizontal wall mounting
+
Dimensions of connections
Average thickness of insulation
23 mm
Connections to the supply network
G 1/2
Net/gross weight/with water
35/38/155 kg
Technical characteristics
Working pressure
0,6 (6) / 0,9 (9) MPa (bar)
Enamelled steel
+
Protective magnesium anode
+
Selection of temperature up to 65 °C
+
Heating element control lamp
+
Protection against freezing
+
Termometer
+
Degree of protection
IP 23
Electrical connections
Power consumption
2000 W
Voltage 230 V ~
+
Nominal current
8,7 A
Functional characteristics
Thermal losses at 65 °C
1,84 kWh/24
Heating time from 10 to 55 °C
3h 46min
Transportation data
Packaging dimensions [WxDxH]
488x498x1115 mm
