Space D2.5 300
C
-
Storage volume V267 l
-
Net/gross weight/with water138/150/404 kg
High quality insulation
Overheating protection
Technical properties
Characteristics
Energy efficiency class
C
Standing loss S
81 W
Storage volume V
267 l

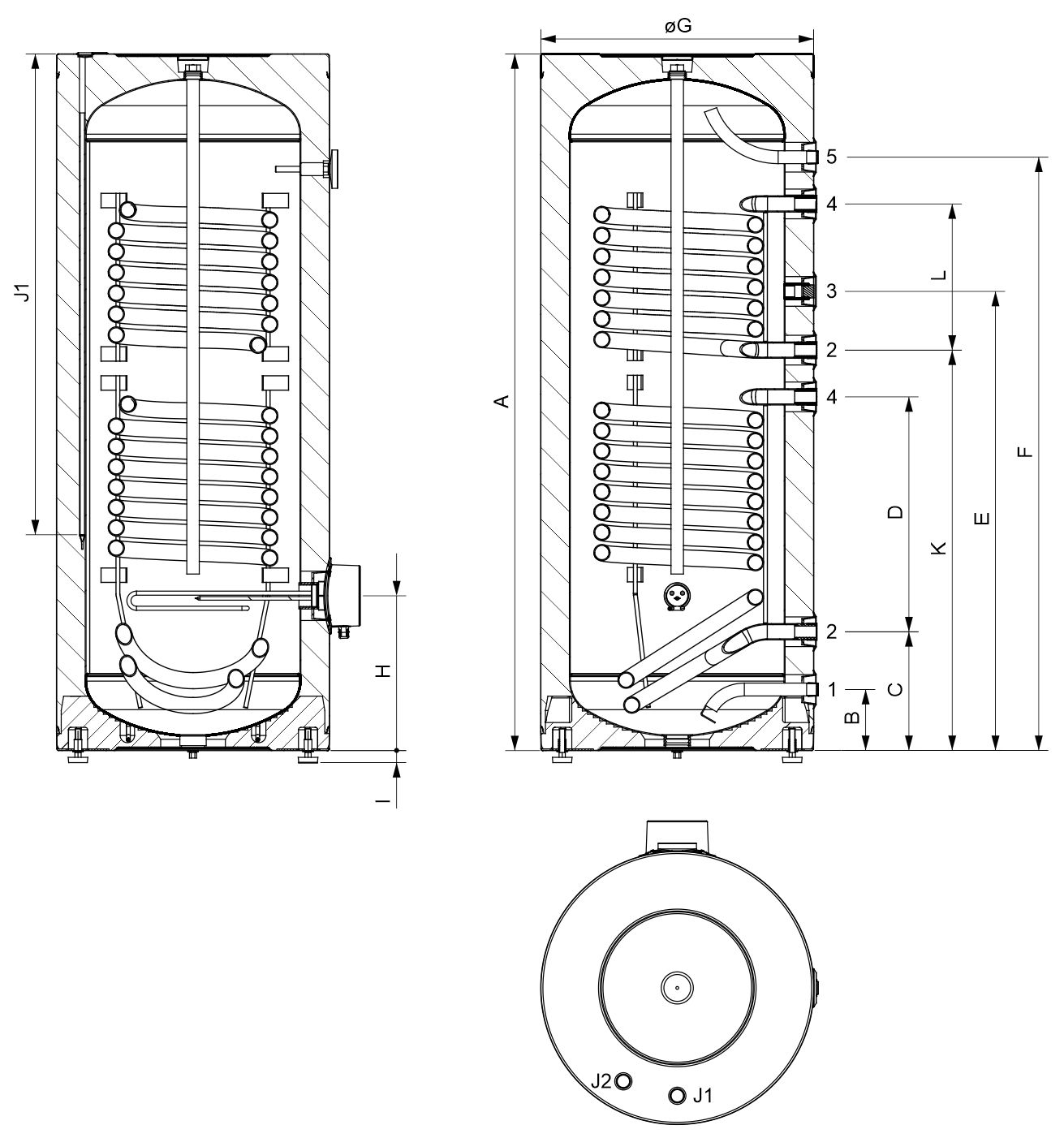

Connection dimension
Height
1490 mm
Diameter
670 mm
Depth
735 mm
Connections to the supply network
1" ZN
Dimension of heat exchanger connection
1" ZN
Net/gross weight/with water
138/150/404 kg
Technical characteristics
Enamelled steel
+
Protective Mg anode
+
Average thickness of insulation
67 mm
Degree of protection
IP 24
Surface area of the heat exchanger
1,5 + 0,9 m2
Heat exchanger volume
9,5 + 6,2 l
Exchange power in continuous mode (max. coil output)
40,1 + 24,0 kW
Continous output ΔT=35K
984 + 591 l/h
Working pressure
0,6 (6) / 0,9 (9)/ 1(10) Mpa(bar)
Working pressure heat exchanger
1,2 (12) Mpa(bar)
El. resistance heating power
3 kWh
Voltage 230 V ~
+
Max. water temperature storage tank
85 °C
Max. water temperature heat exchenger
95 °C
Thermal losses
1,9 kWh/24
Transportation data
Packaging dimensions [WxDxH]
760x760x1720 mm
