Space S2.0 200
C
-
Storage volume V180 l
-
Net/gross weight/with water91/103/271 kg
High quality insulation
Overheating protection
Technical properties
Characteristics
Energy efficiency class
C
Standing loss S
65 W
Storage volume V
180 l

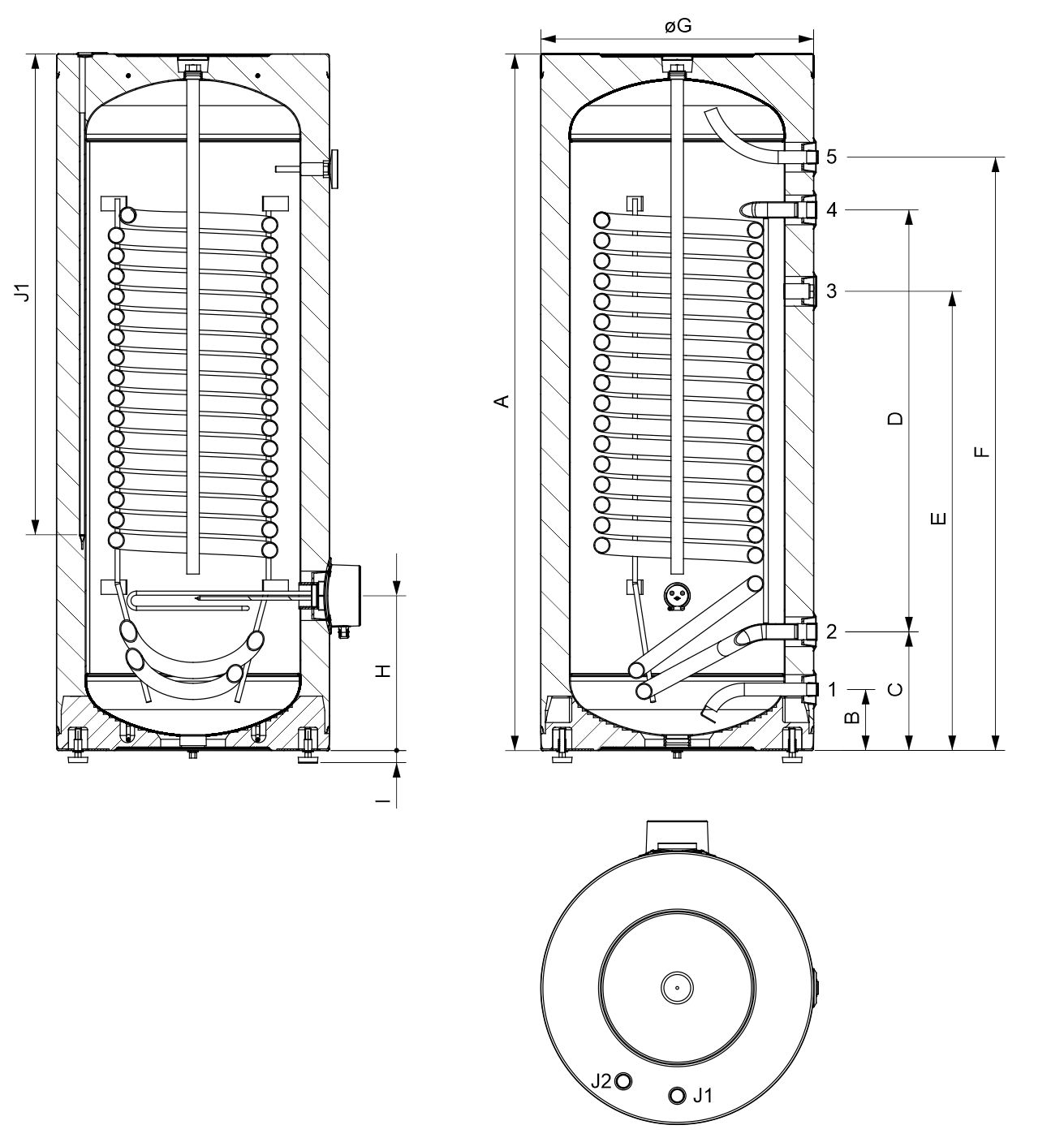

Connection dimension
Height
1480 mm
Diameter
570 mm
Depth
635 mm
Connections to the supply network
3/4" ZN
Dimension of heat exchanger connection
1" ZN
Net/gross weight/with water
91/103/271 kg
Technical characteristics
Enamelled steel
+
Protective Mg anode
+
Average thickness of insulation
60 mm
Degree of protection
IP 24
Surface area of the heat exchanger
2 m2
Heat exchanger volume
12,2 l
Exchange power in continuous mode (max. coil output)
56,2 kW
Continous output ΔT=35K
1380 l/h
Working pressure
0,6 (6) / 0,9 (9)/ 1(10) Mpa(bar)
Working pressure heat exchanger
1,2 (12) Mpa(bar)
El. resistance heating power
3 kWh
Voltage 230 V ~
+
Max. water temperature storage tank
85 °C
Max. water temperature heat exchenger
95 °C
Thermal losses
1,6 kWh/24
Transportation data
Packaging dimensions [WxDxH]
760x680x1685 mm
