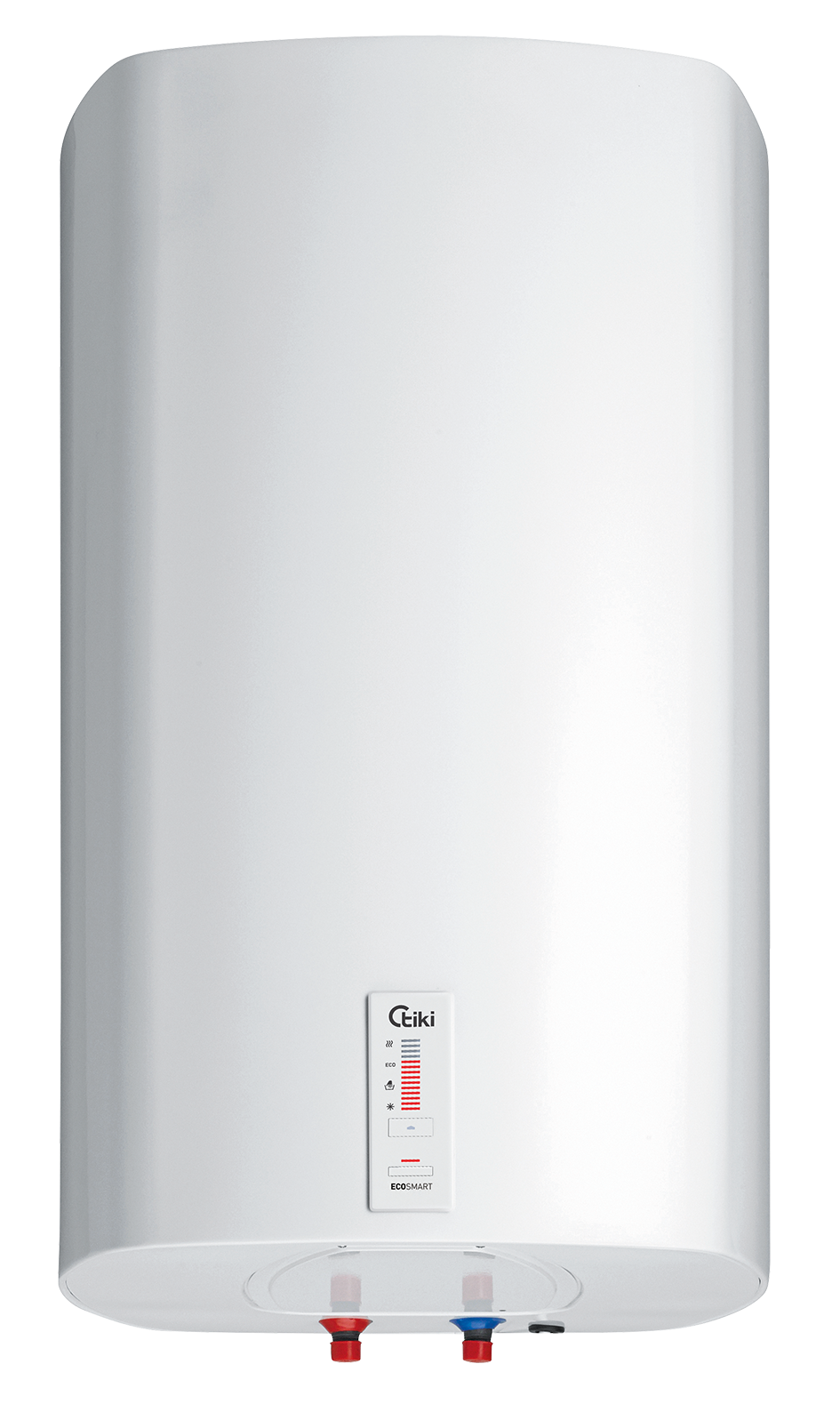

Supr Z 50
B
-
Storage volume V48,3 l
-
Daily electricity consumption Qelec_ACC6,424 kWh
-
AEC annual electricity consumption1241 kWh
-
Net/gross weight/with water30/33/80 kg
Vertical wall mounting
High quality insulation
Indirect tube air heaters
Technical properties
Characteristics
Declared load profile
M
Energy efficiency class
B
Energy efficiency ƞwh
40 %
AEC annual electricity consumption
1241 kWh
Daily electricity consumption Qelec_ACC
6,424 kWh
Thermostat temperature settings
"eco"
Value of smart
1
Weekly electricity consumption with smart control Qelec, week, smart
23,119 kWh
Weekly electricity consumption without smart control Qelec, week
26,566 kWh
Storage volume V
48,3 l
Mixed water at 40°C
66 l
Purpose
One or more connection point
+
Vertical wall mounting
+
Dimensions of connections
Average thickness of insulation
40 - 85 mm
Connections to the supply network
G1/2
Net/gross weight/with water
30/33/80 kg
Technical characteristics
Working pressure
0,6 (6) / 0,9 (9) Mpa (bar)
Enamelled steel
+
Protective magnesium anode
+
Electronic control unit
+
On / Off key
+
Temperature range adjustment up to 75 °C
+
LED Thermometer
+
Overheating protection
+
Dry fire protection
+
Setting to "freeze prevention"
+
Self-learning function
+
Indication of heating element operation
+
Indication of thermostat failure
+
Indication of over heating
+
Smart operation indicator
+
Degree of protection
IP 24
Electrical connections
Number of el.heaters x power
6 x 1000 W
Power consumption
2; 4; 6 kW
Voltage
3/N/PE, 2/N/PE 400V~; 1/N/PE 230V~; 50 Hz
Functional characteristics
Thermal losses at 65 °C
0,62 kWh/24
Heating time from 10 to 65 °C
1h 38min
Transportation data
Packaging dimensions [WxDxH]
580x605x720 mm
